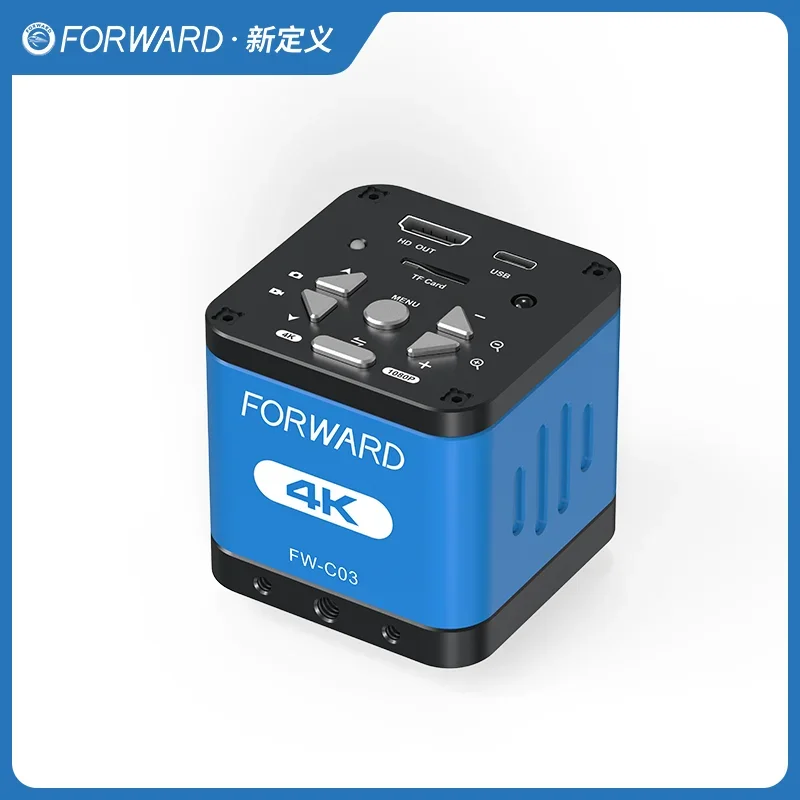

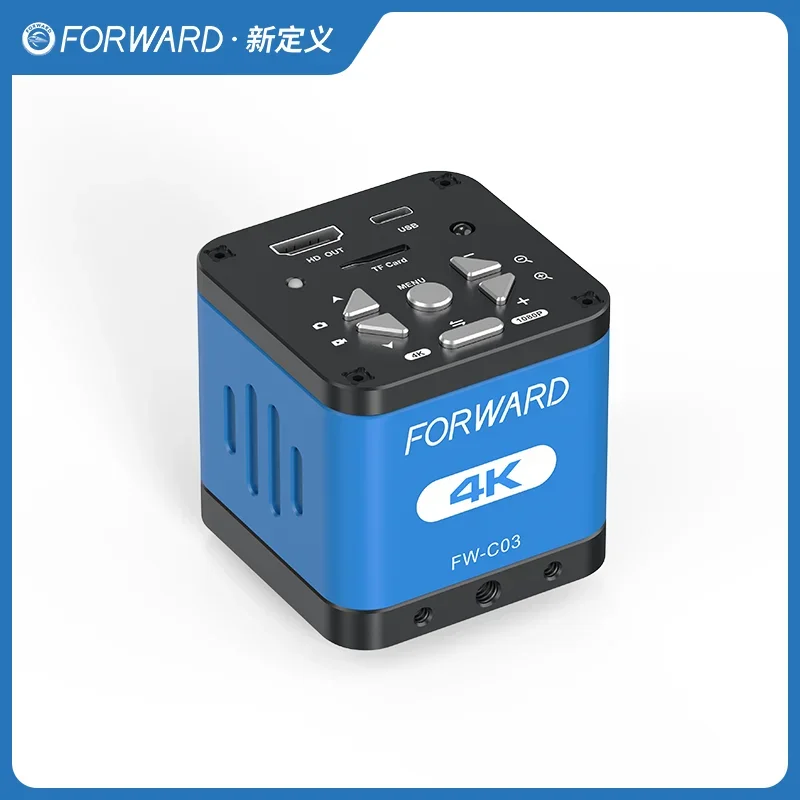

The FORWARD FW-C03 4K Ultra HD Industrial Microscope Camera is an elite, standalone imaging solution designed to eliminate PC dependencies at professional mobile phone repair stations and chip-level training environments. Housed in a durable, heat-dissipating metal chassis, this workstation upgrade pairs seamlessly with any standard trinocular microscope using native C/CS interface lens compatibility.
Driven by a highly capable 1/2.8" optical sensor, the FW-C03 streams uncompressed, native $3840 \times 2160$ resolution video at 30fps straight over its HDMI 4K output interface. This provides technicians with fluid, lag-free real-time visuals on large external monitors, turning tedious tasks like micro-soldering, tracing jumper wires, and BGA reballing into a high-comfort workflow that prevents optical fatigue.
Advanced Standalone Bench Capabilities:
- Computer-Free U-Disk Media Capture: Snap crisp 8-Megapixel JPG photos and record clean $3840 \times 2160$ MP4 videos directly onto a standard U-Disk (supports flash drive capacities up to 64GB).
- Built-In File Management System: Browse, review, and organize your saved repair footage or instructional videos directly on your workbench screen using the camera's native file management user interface.
- 16 $\times$ 16 Cross Line Matrix: Overlay a highly adjustable 16 $\times$ 16 crosshair grid on the live display for microchip alignment, centering trace jumps, and precision scaling without requiring any complicated PC software setups.
- Low-Heat DC 5V Operation: Powered by a clean, stable DC 5V working voltage that minimizes localized thermal build-up inside the camera body, preserving image sensor clarity and prolonging hardware life during grueling, all-day repair sessions.
Product Specifications Matrix
Technical Attribute | Specification Detail |
Brand Name | FORWARD |
Model Number / Variant | FW-C03 Industrial Series |
Sensor Target Size | 1/2.8" |
Sensor Resolution | 4K Ultra HD ($3840 \times 2160$ @ 30fps) |
Output Interface | HDMI 4K @ 30fps |
On-Board Storage | Supports U-Disk / USB Flash Drives (Capacity < 64GB) |
File Management | Yes (Built-in On-Screen File Directory Browser) |

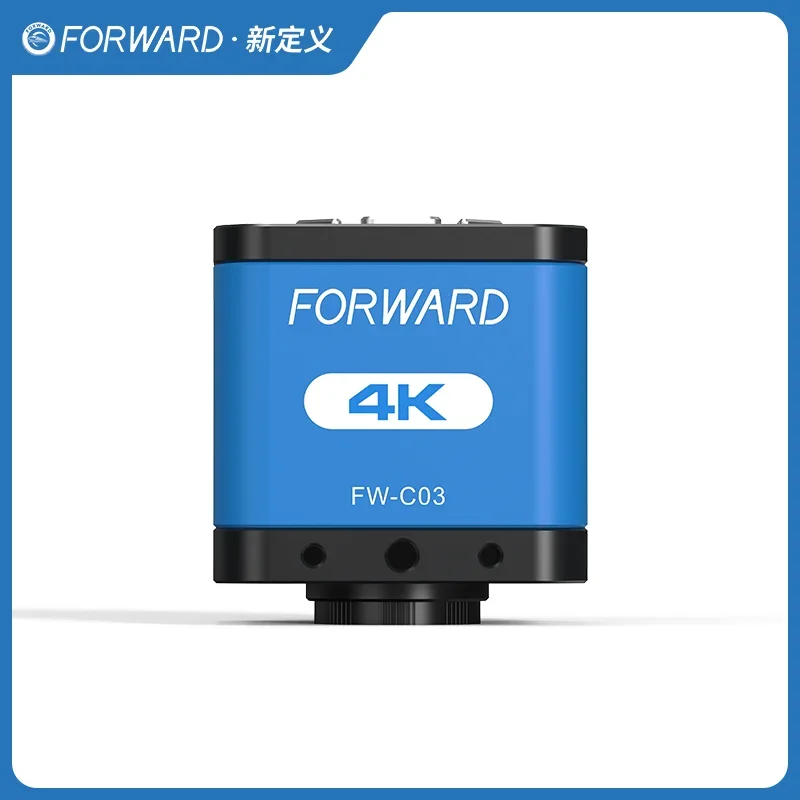

Lens Compatibility | Supports Standard C / CS Interface Mounts |
Photo Capture Output | 8 Megapixel (JPG Format) |
Video Capture Output | $3840 \times 2160$ (MP4 Format) |
On-Screen Alignment | 16 $\times$ 16 Grid / Cross Line Group |

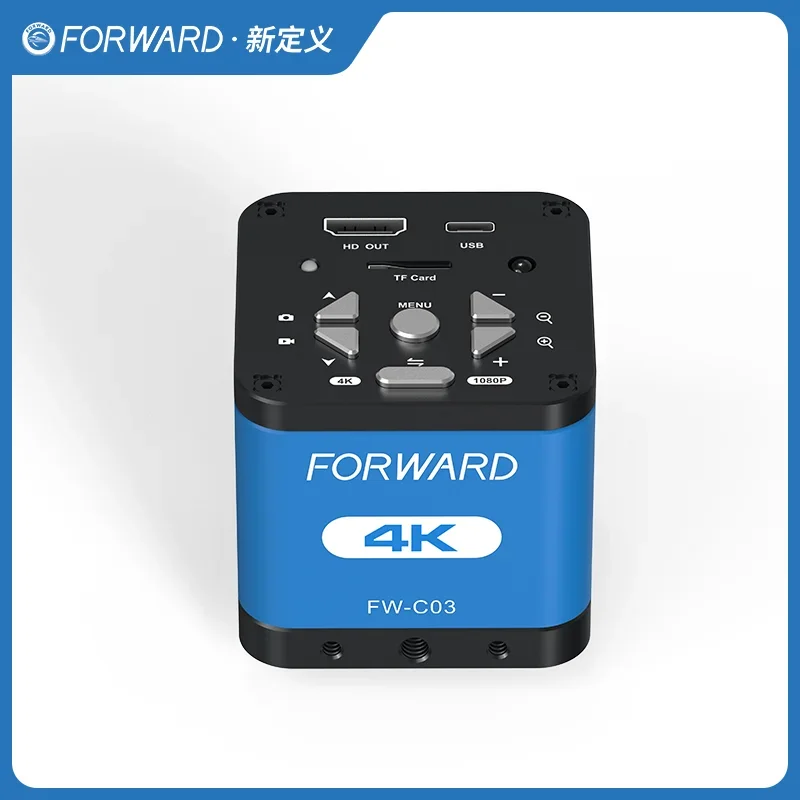

Operation Control Mode | Responsive Chassis Push-Buttons |
Working Voltage | DC 5V |
Primary Bench Utility | Mobile Phone Board Repair, Micro-Soldering, LCD Inspection |
Recommended Bench Operation Guide:
- Optical Mount: Securely thread the FORWARD FW-C03 camera housing onto your microscope's trinocular CTV adapter tube.
- Display Setup: Connect a high-speed HDMI cable from the camera's video output jack directly to your 4K diagnostic monitor.
- Storage Insertion: Plug a formatted USB flash drive (under 64GB capacity) into the camera's storage port to enable standalone media capturing.
- Power & Alignment: Connect your DC 5V power cable. Use the physical push-buttons on the chassis to activate your preferred 16 $\times$ 16 cross line layouts or to open up the built-in file directory browser to review your captured motherboard repair archives.
