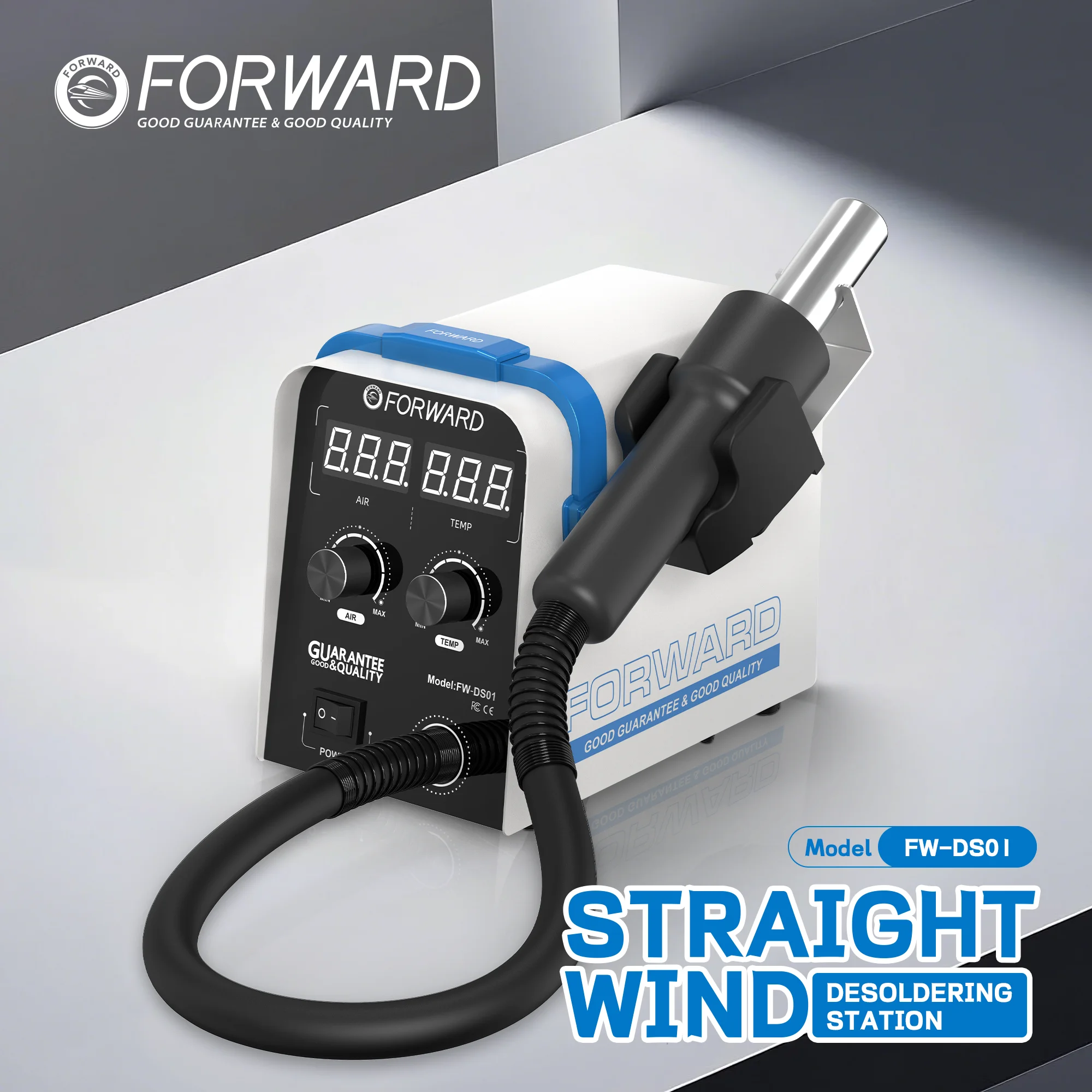

Forward FW-DS01 Professional Welding Station Kit with BGA Rework for Mobile Phone Repair and Welding Tools

Forward FW-DS01 Professional Welding Station Kit with BGA Rework for Mobile Phone Repair and Welding Tools

• Intense 800W Thermal Mass: High-wattage output ensures instant heat recovery, eliminating dangerous temperature drops when working on heavy ground planes or unleaded factory solder.

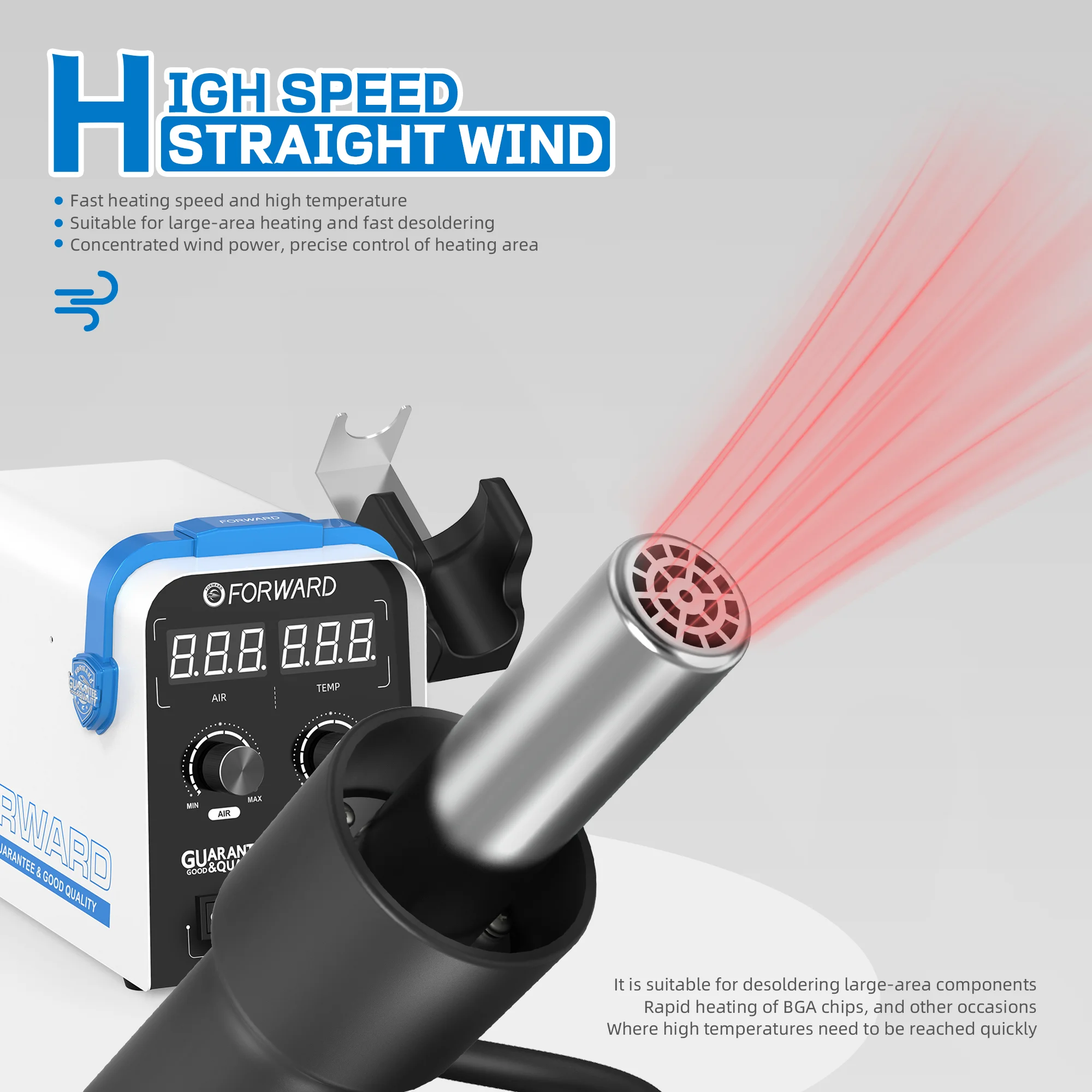

• High-Speed Brushless Turbine Airflow: Delivers an impressive max airflow rate of 45L/Min at 13,000 R/min, allowing precise, uniform heat distribution over the target component.

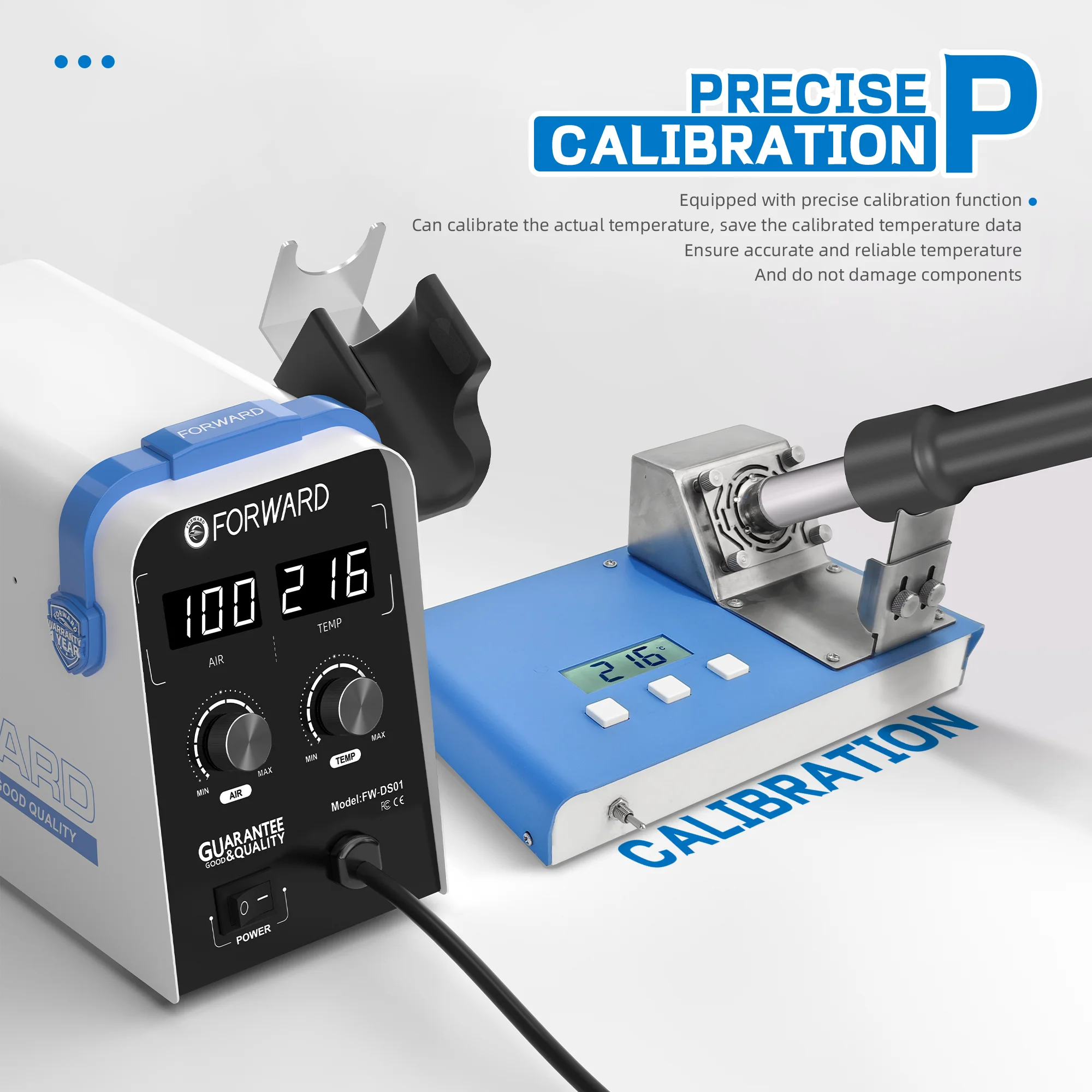

• Strict Temperature Stability: Digital tube display provides micro-adjustments across a broad 100°C to 500°C range with an ultra-tight constant temperature accuracy of $\pm2^\circ\text{C}$ to prevent PCB blistering.
• Magnetic Induction Sleep Bracket: Automatically lowers temperature and goes into an energy-saving standby mode when placed in the cradle, drastically extending the lifespan of the heating element.

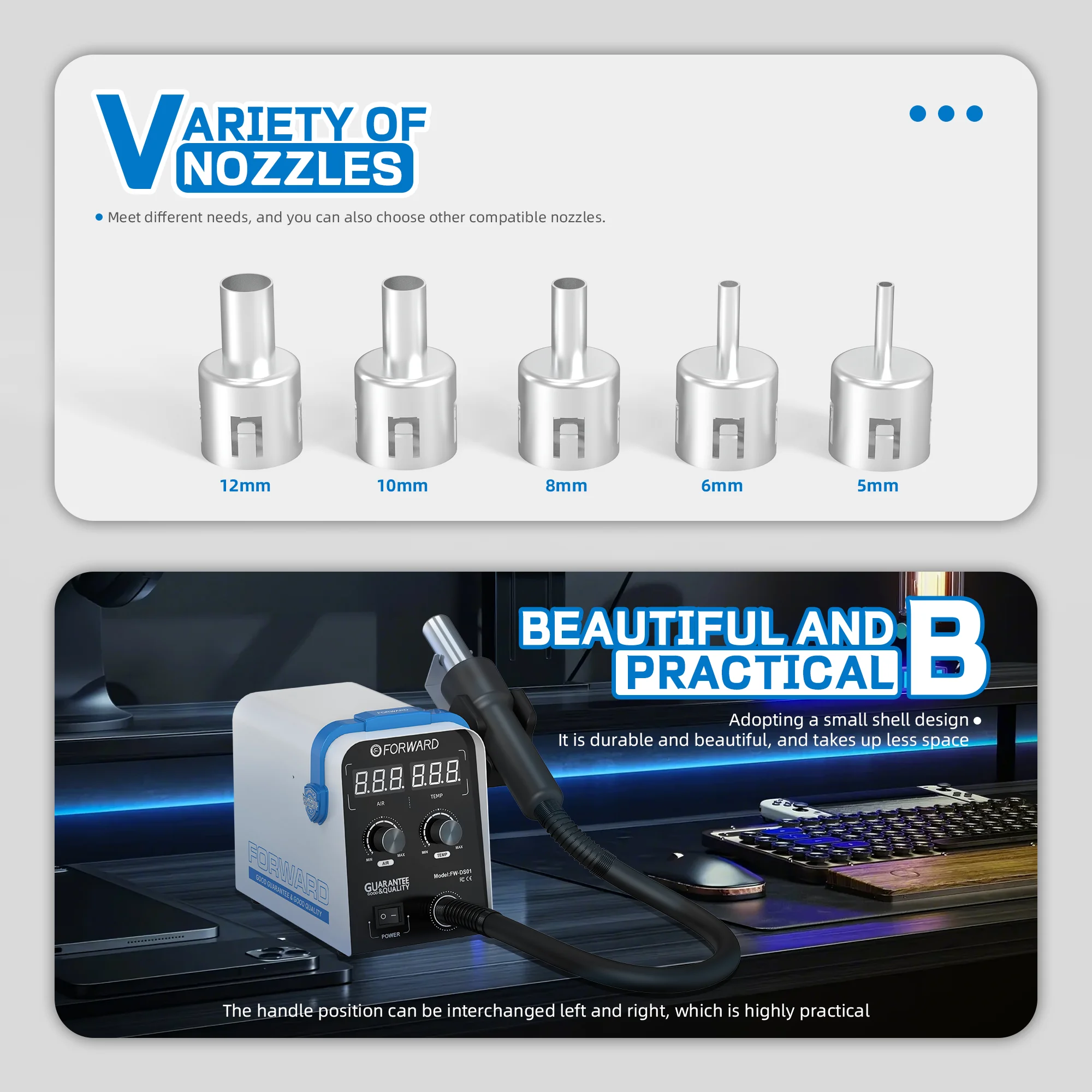

• Plug-in Inverted Nozzles: Features a quick-change nozzle interface that speeds up workflow configurations and keeps your nozzle collection tightly locked during high-heat operations.

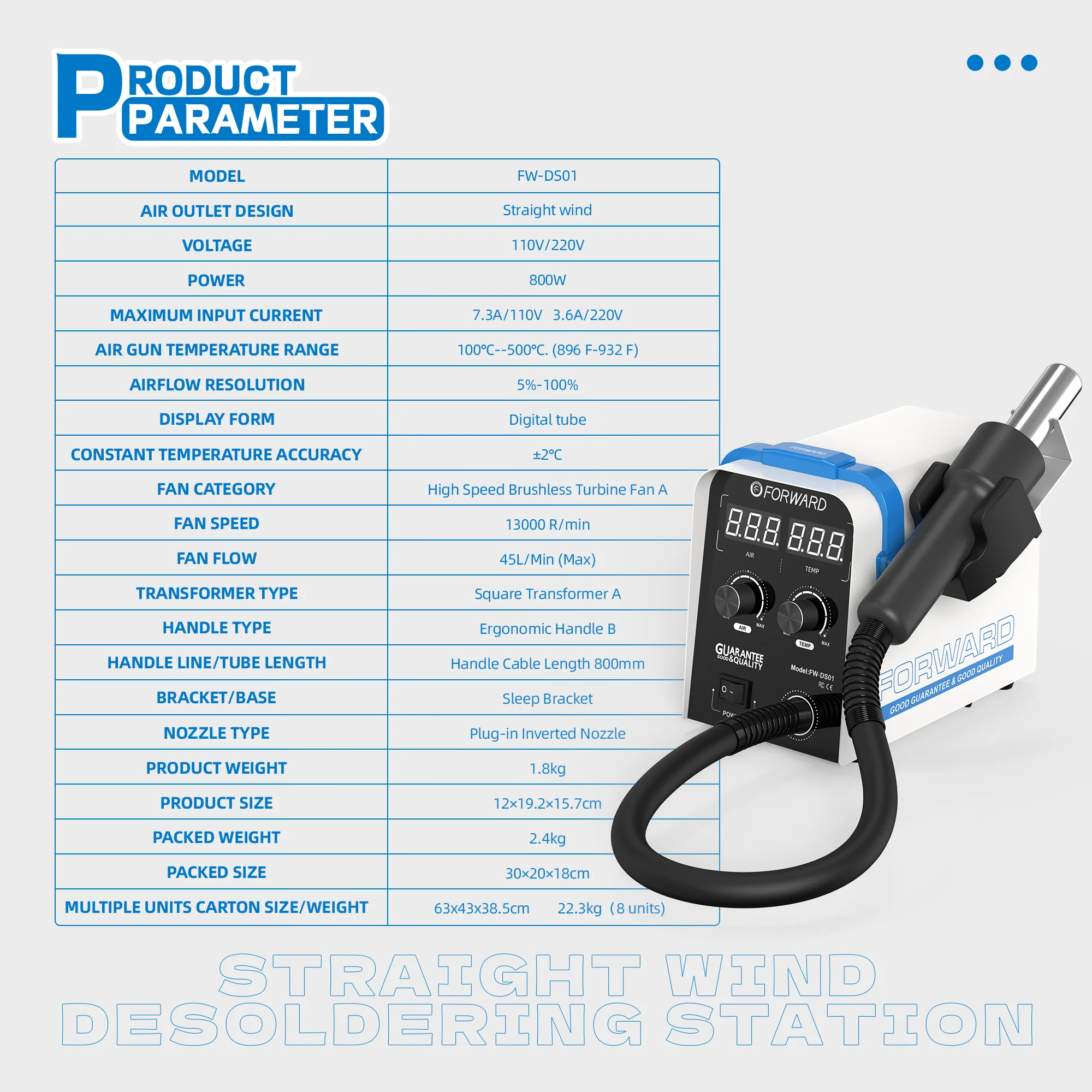

PRODUCT PARAMETER

• MODEL: FW-DS01
• AIR OUTLET DESIGN: Straight wind
• VOLTAGE: 110V/220V
• POWER: 800W
• MAXIMUM INPUT CURRENT: 7.3A/110V 3.6A/220V
• AIR GUN TEMPERATURE RANGE: 100°C--500°C (896 F-932 F)
• AIRFLOW RESOLUTION: 5%-100%

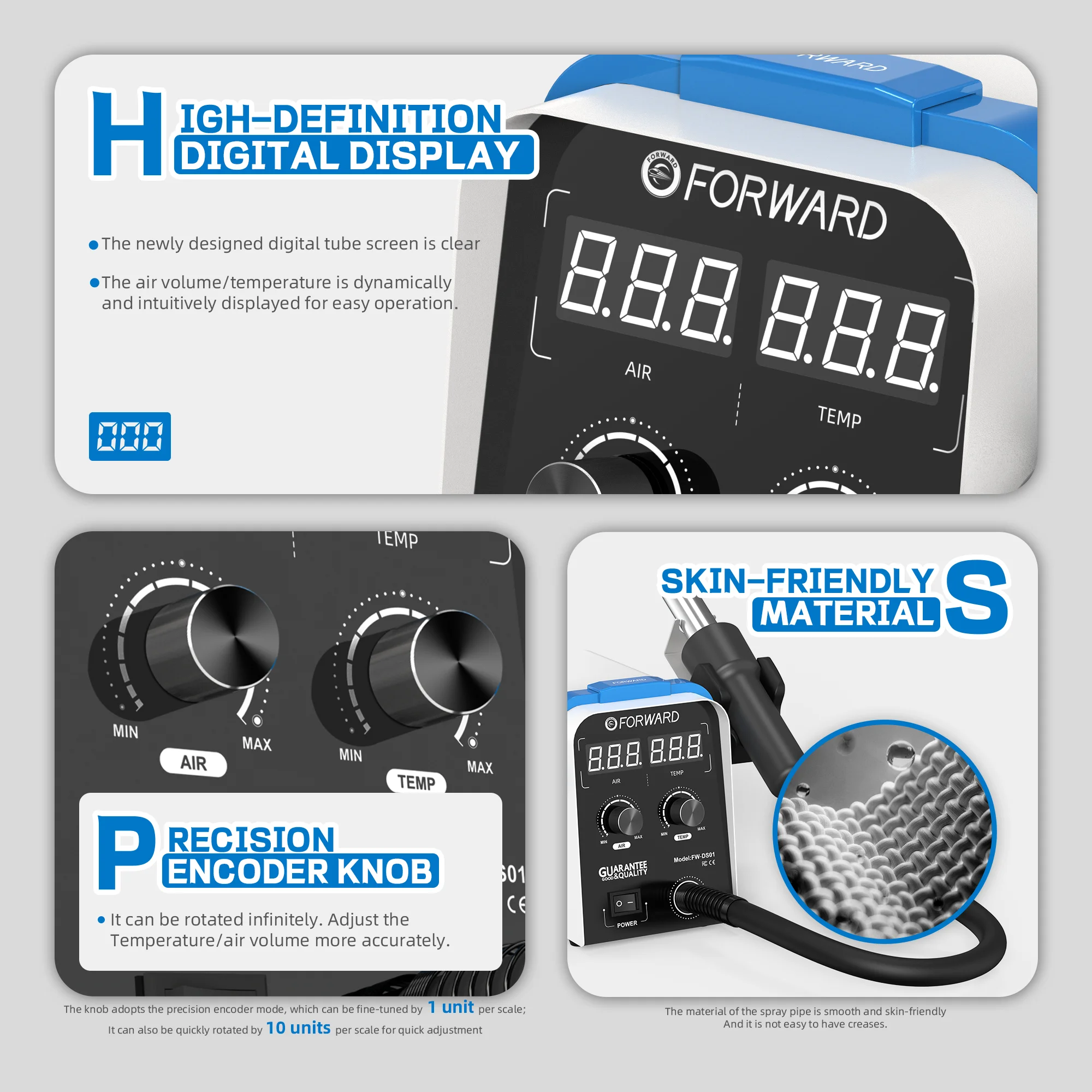

• DISPLAY FORM: Digital tube
• CONSTANT TEMPERATURE ACCURACY: ±2°C
• FAN CATEGORY: High Speed Brushless Turbine Fan A
• FAN SPEED: 13000 R/min
• FAN FLOW: 45L/Min (Max)
• TRANSFORMER TYPE: Square Transformer A
• HANDLE TYPE: Ergonomic Handle B
• HANDLE LINE/TUBE LENGTH: Handle Cable Length 800mm
• BRACKET/BASE: Sleep Bracket
• NOZZLE TYPE: Plug-in Inverted Nozzle
• PRODUCT WEIGHT: 1.8kg
• PRODUCT SIZE: 12×19.2×15.7cm
• PACKED WEIGHT: 2.4kg
• PACKED SIZE: 30×20×18cm
