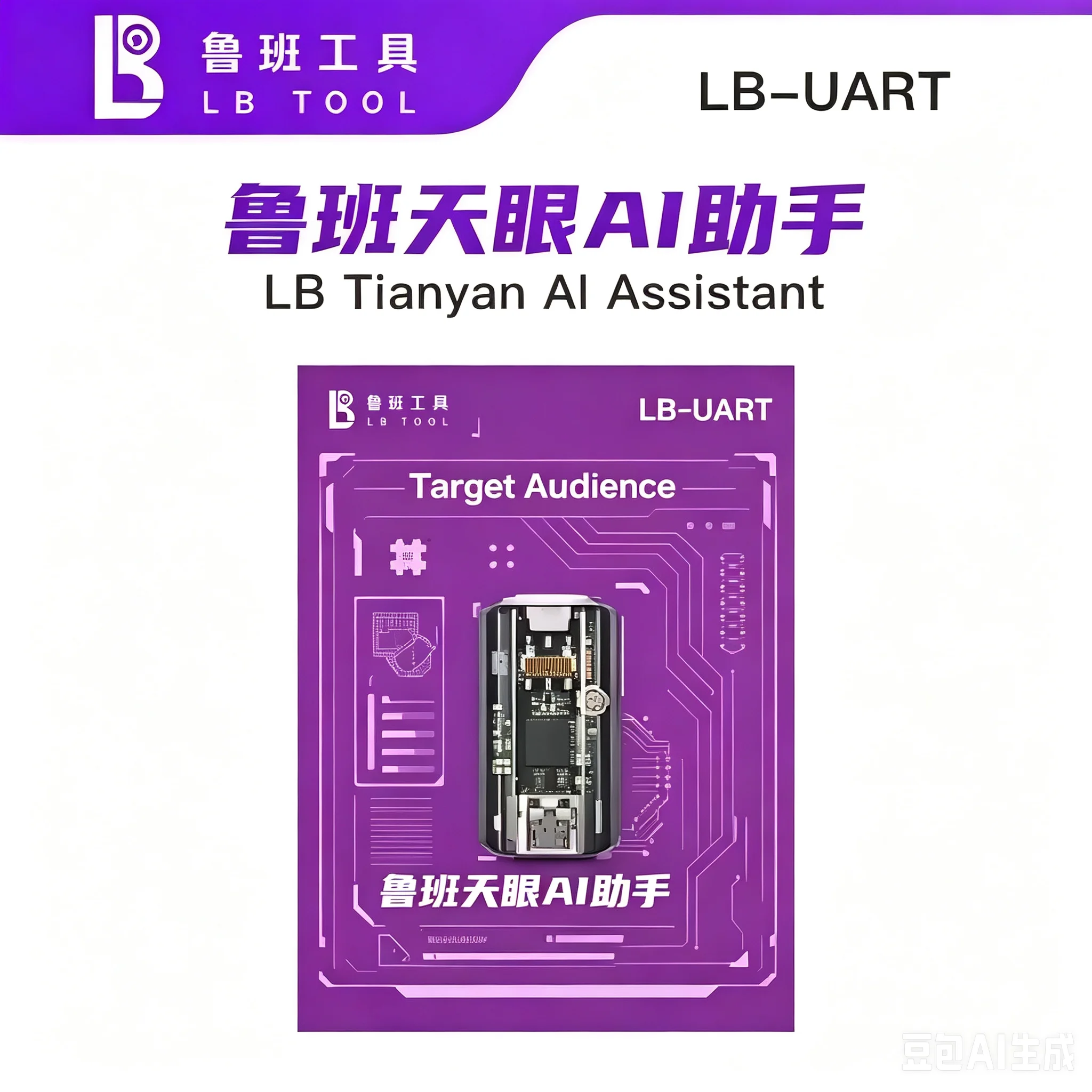

LuBan LB-UART Tianyan AI Assistant Analysis Module for Android Motherboard Repair
The Tianyan AI Assistant Analysis Module is a professional diagnostic tool designed for Android Phone motherboard repair, capable of reading Boot Loader and NAND flash layer data to pinpoint fault layers with hardware-level accuracy. As the next-generation upgrade to the M6, it delivers faster scanning speeds, broader model compatibility, and an intuitive workflow that replaces trial-and-error component swapping with confident, data-driven repair.
Features | Tianyan AI Assistant Analysis Module
- Error Layer Display: Automatically detects and displays the exact fault layer on the motherboard at a glance.
- Screen Warning Alert: Abnormal layers trigger an on-screen warning, preventing any missed fault detection.
- Timing Display: Records the diagnostic time of each layer for easy back-tracing and analysis.
- Tracking & Diagnosis: Tracks the full diagnostic process, with every step of data traceable and reviewable.
- Auto Readout: Reads layer data automatically once connected to the device — no manual trigger needed.
- Real Data Matching: Diagnostic results are automatically matched against the motherboard's real data for higher accuracy
How to Use
- Connect to Computer: Plug the module into your computer via the included USB cable.
- Launch the Software: Open the companion diagnostic software on your PC.
- Hardware Connection: Connect the test clips to the iPhone motherboard test points as shown in the pinout guide.
- Smart Analysis: The module automatically begins scanning and analyzing each motherboard layer.
- Targeted Repair: Identify the faulty layer from the diagnostic results and proceed with precision repair.
Specification
- Brand: LuBan
- Model: LB-UART
- Product Name: Tianyan AI Assistant Analysis Module
- Interface type: USB Type-C + TX/RX/GND
- System Support: Windows/ macOS/ Linux
Purchase & Service
Cloud AI Service: Pay-as-you-go with a credit-based system. Activate AI features by topping up credits, and get the latest processor baseband numbers included. Credits do not expire, and the hardware diagnostic functions remain fully usable even after the credits run out.
